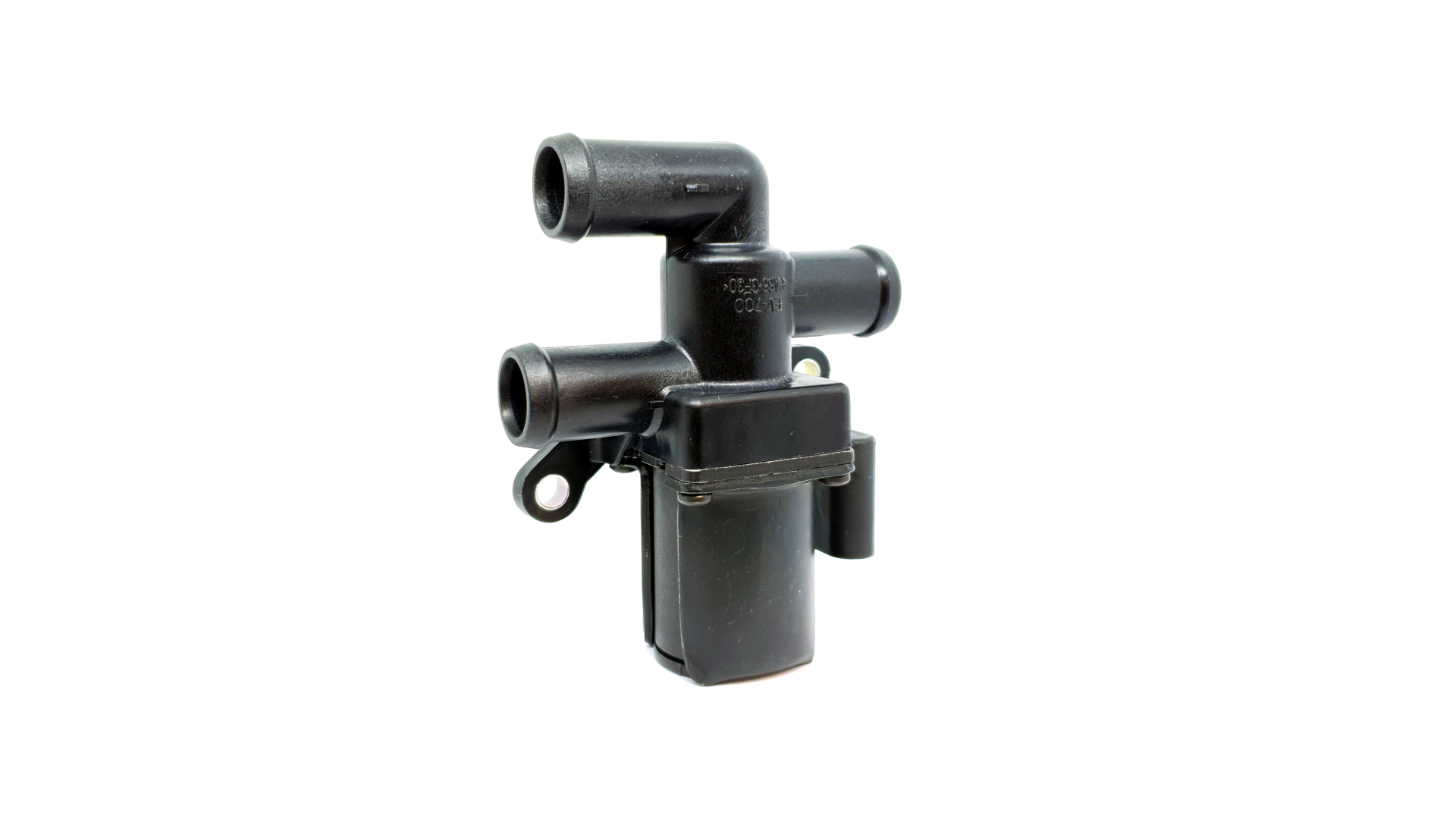

Electric 3 way valve

Electric 3 way valve är en tillbehör från Autoterm.

Beskrivning från Autoterm (engelska):

This electric 3 way valve has 2 states/positions corresponding to electric on/off supply. The valve has 3 spigots corresponding to one inlet & two outlet spigots.

Standard configuration from 1 to 2 or 1 to 3.

• OFF state - The coil is not powered and the rubber plunger is closing the 3rd spigot. In this state, the spring is applying the closing force. Flow direction from 1 to 2 is opened.
• ON state - The coil is powered and the plunger is closing the 2nd spigot. The closing force is the one applied by the coil minus the spigot force. Flow direction from 1 to 3 normally closed.

Voltage: 12V

Electric power: 18W

Max temperature: 120°C

Maximum pressure: 2 bar

Package contents:

1 x Electric 3 way valve

1 x Socket housing

2 x Rubber seals

2 x Crimp sockets

Inlet/Outlet OD: Ø 20 mm

Intended to be used together with Coolant Hose (Assy.AT7-0004-FL0).

Tekniska detaljer
Artikelnummer: FR061
Spänning: 12V
Vikt: 0.42 kg
