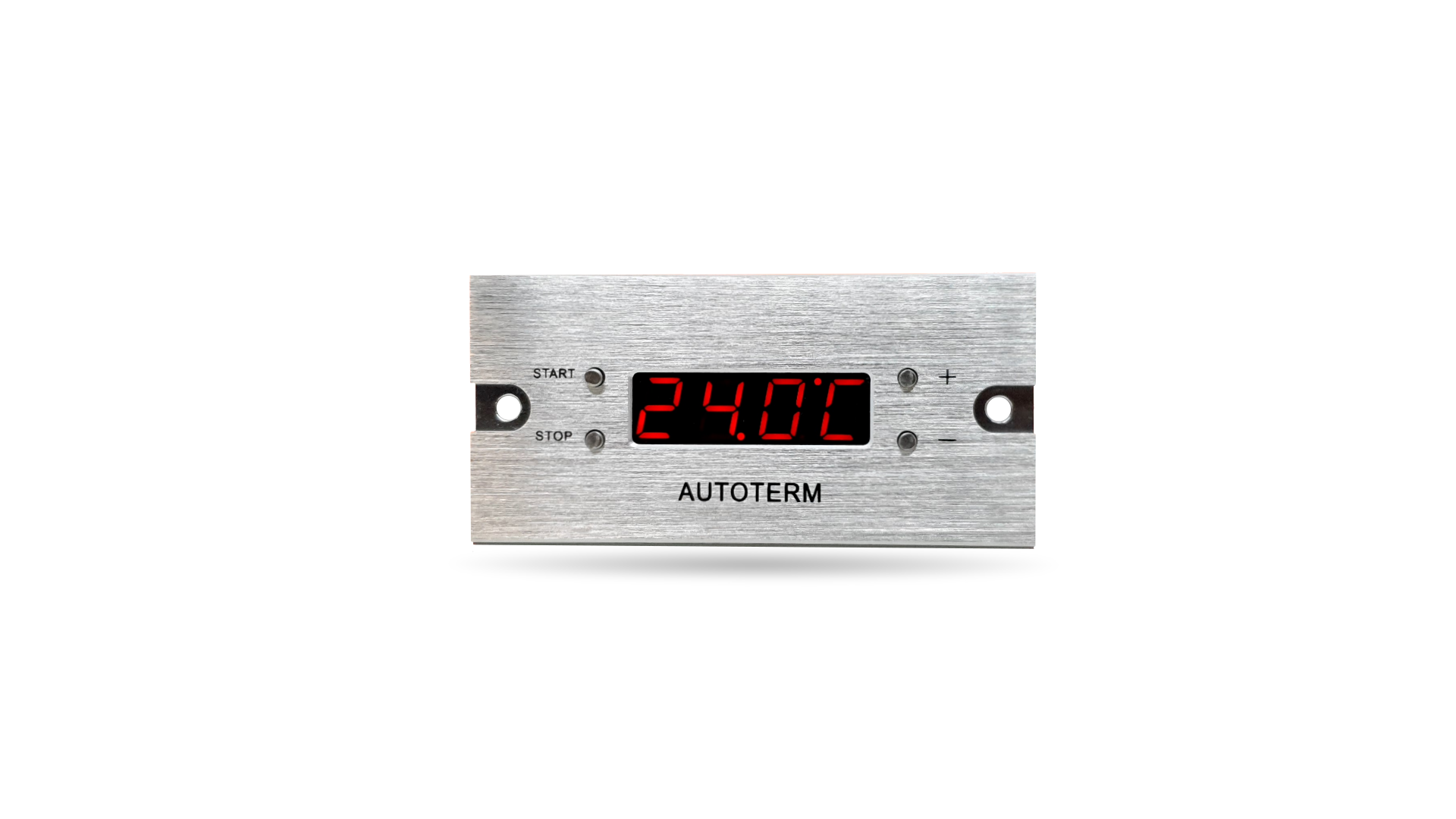

Thermal fan controller CHM36

Thermal fan controller CHM36 är en tillbehör från Autoterm.

Beskrivning från Autoterm (engelska):

AUTOTERM CHM36 is a programmable controller with heating/cooling functions that work based on temperature read-out according to the set start-up and power-off temperature. This thermal fan controller is an excellent addition to the AUTOTERM CHX heating matrix for automatic room/space heating by your set temperature with our without additional fan speed controller AUTOTERM FC9.

CHM36 is equipped with an LED display for easy temperature read-out.

Programmable features:

• Celsius / Fahrenheit degrees
• Heating or cooling modes
• Adjustable hysteresis
• Temperature correction
• Start time delay

Voltage DC: 12/24V

Front plate material: Aluminum

Number of channel outputs: 4 channels

Max power load per channel: 30W

Dimensions: 92 x 44 x 35 mm

Tekniska detaljer
Artikelnummer: FR059
Spänning: 24V
Vikt: 0.10 kg
